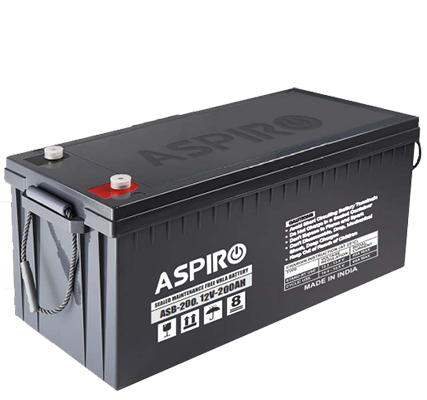

SMF VRLA Batteries
Product Features
Positive Grid Alloy
Positive Paste Composition
Long Shelf Life
Deep Discharge Recovery
Fast Charging Capability
High Rate Performance
Excellent Cyclic Performance
Hight Purity Material
Product Specification
| Model | Nominal Voltage | Rated Capacity @ C20 at 27OC (10.50 EBV) |
imen (mm) | Weight (Kgs ± 5%) | ||
|---|---|---|---|---|---|---|
| Length (± 5mm) |
Width (± 5mm) |
Height (± 5mm) |
||||
| LSB 42-12 | 12 | 42 | 198 | 167 | 175 | 13.5 |
| LSB 65-12 | 12 | 65 | 350 | 167 | 190 | 22 |
| LSB 80-12 | 12 | 80 | 307 | 169 | 240 | 23 |
| LSB 100-12 | 12 | 100 | 330 | 173 | 222 | 29 |
| LSB 120-12 | 12 | 120 | 406 | 171 | 240 | 35 |
| LSB 150-12 | 12 | 150 | 485 | 170 | 240 | 44 |
| MAXPRO20012 | 12 | 200 | 522 | 240 | 220 | 60 |
* Also Available in 75Ah & 90Ah
| Electrolyte | Immobilized H2 So4 |
|---|---|
| Positive Plate Alloy | Arsenic and Cadmium Free Pb-Ca-Sn Alloy |
| Positive Plate Type | Flat Pasted |
| Type of Connection | Bolted |
| Type of Separator Material | Absorptive Glass Mat |
| Container Materia | ABS |
| Recommended Charging Method | Constant Potential |
| Shelf life at 27 C | 6 Months |
| Self Discharge | <1% per week |
| Float Charge Voltage | 13.5V - 13.62V |
| Boost Charge Voltage | 13.8V - 14.1V |
| Charging Time from 20% SOC TO 90% SOC | 6-8 Hrs |
| Operating Temperature Range | "0OC to 50OC" |
| Design Life at 27 C | 10 Years |
| Cyclic Service Life (@27 C) | |
| At 20% D.O.D | 1400 Cycles |
| At 50% D.O.D | 650 Cycles |
| At 80% D.O.D | 300 Cycles |
| Product Performance Conforms to | JIS C 8702 |
* Technical Parameters are Subject to Change due to Continuous improvements and R&D
Application
UPS System, Telecommunication Equipment, Fire Alarm & Security System, Office Automation, EP ABX, Banking & Financial Market, Data Center, Street Light, Electronic Weighing Scale and in many other applications.
- Proprietary Positive Grid Alloy
- Proprietary positive Paste Composition
- Long Shelf Life above 6 Months
- Deep Discharge Recovery Even after 7 days
- Fast Charging Capability Within 6-8 hours
- Superior High rate Performance at 5 to 60 Minute rate of Discharge
