About Us
Innovation, engineering and constant endeavor to meet customer demands and needs has positioned ASPIRO group as a trusted and reliable name in the field of Miniature Circuit Breakers, Residual Current Circuit Breakers, Distribution Boards, Changeover Switches, Switch-Disconnector, Fuses, Rewireable Switch Fuse Unit, Busbar Chambers and allied products of Low Voltage Switchgear.
To be able to contribute towards ‘Go Green’ and to support the global community in saving power, ASPIRO group introduced energy efficient and high performing Solar Tubular Batteries and SMF Batteries, Solar Hybrid Inverters, DSP Sinewave Inverters, Solar Panels and Automotive Batteries to meet different residential, institutional and industrial requirements’
Our manufacturing plants are equipped with the best machinery, technologies, and systems to rival the best facilities anywhere in the world. Our vast network of distributors and agents in India and across the globe act like our extended arms to ensure the highest level of customer satisfaction. India is poised for significant growth and ready to carve its place in the global economic landscape-we at ASPIRO group are well positioned to be an integral part of this journey.
Welcome to Aspiro Electric
Electrical Distribution needs are continuously evolving in residential, commercial and industrial sectors.Improved operational safety, continuity of service, greater convenience and operating cost have assumed a tremendous significance. Aspiro Electric products have been designed to continuously adapt to these changing needs.

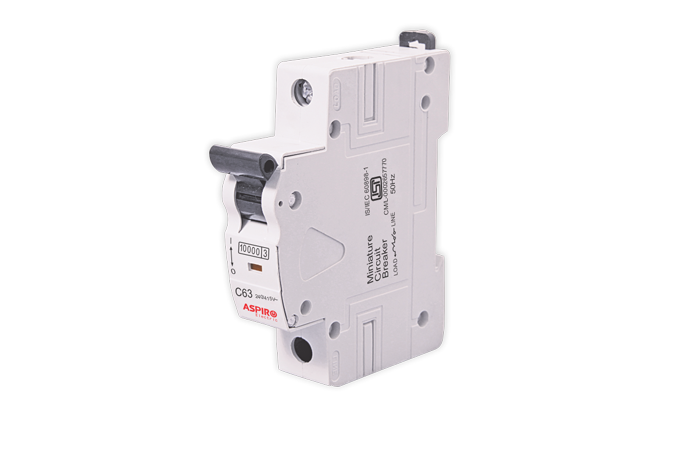

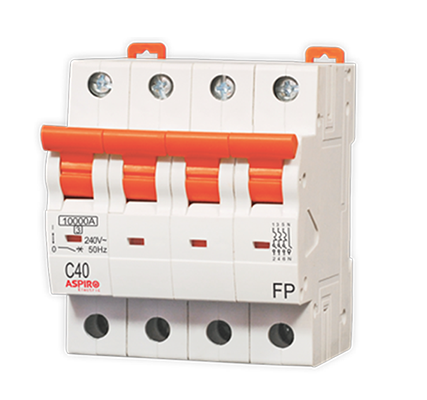

MINIATURE CIRCUIT BREAKERS (MCBs)
- Rated Short-Circuit breaking capacity, Icn 10kA & 6kA
- Low power consumption, thus cost effective and energy saving
- 13 plates Arc Chute for effective arc quenching
- Enclosure ‘FR grade Thermoplastic material - Nylon 6’
- Easy DIN-Rail extraction
- Energy Limiting Class 3 to ensure low let through energy to limit
- Thermal & mechanical stress on cable
- Trip free mechanism : MCB trips even if held in ON position.
- Longer electrical life
- Degree of Protection IP 20
- Line Load clear indication
- Contact indications window (Red = ON & GREEN = OFF)
- Dual Position Clamp
- Operating Voltage 240V / 415V AC 50 Hz
- ISI and CE marking, RoHs Compliant, Green Product
- 6A to 63A - B Curve | 0.5A to 63A - C Curve
- 0.5A to 63A - D Curve | 0.5A to 63A for DC Application
- Single Pole (IP) | Single Pole & Neutral (IP+N)
- Double Pole (2P) | Three Pole (3P)
- S/IEC 60898-1 | IEC 60898-2 for DC Application
- IEC 60947-2 for Industrial Application

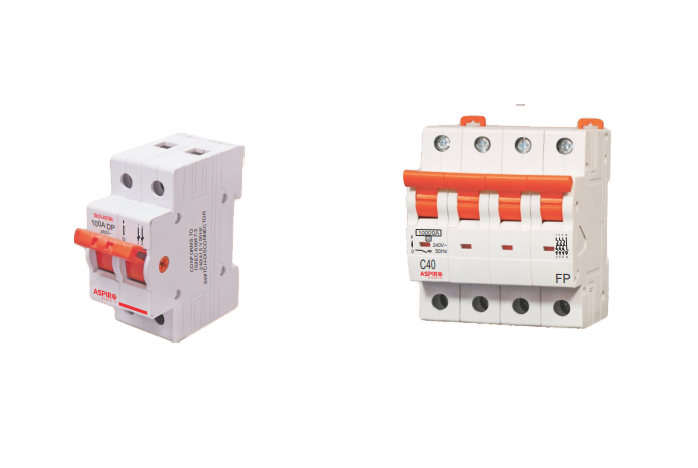

ISOLATORS SWITCHING DEVICE
- Low watt loss
- Longer electrical life
- Energy saving
- Dual termination for bus-bars and wires
- Degree of Protection 1P 20
- Operating Voltage 240V / 415V AC 50 Hz
- Double Pole (2IP)
- Three Pole (3P)
- Four Pole (FP)

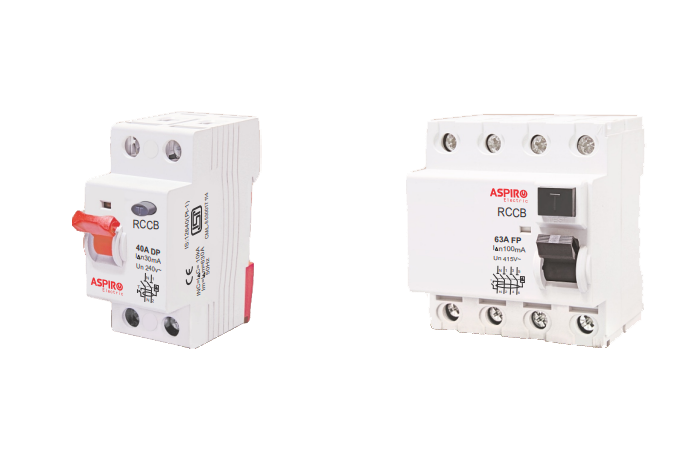

RESIDUAL CURRENT CIRCUIT BREAKERS (RCCBs)
- Degree of Protection : IP 20
- Residual Current Characteristics : AC
- Rated Voltage : 240V / 415V AC
- Rated Frequency : 50/60Hz
- Rated Residual Non-Operating Current : 0.5 In
- Rated Conditional Short-Circuit Current (Inc) : 10kA
- Tripping Duration :
<0.04 sec
- Mechanical Life : >5,000 cycles
- Electrical Life :> 5,000 cycles
- Connection Capacity : Right conductor 25 mm2
- Fastening Torque : 2.0Nm
- Installation : On Symmetrical Din Channel of 35mm
- Vibration Capacity : 5g, Duration >30min
- Position of Use : Any Encapsulated Device; Vertical
- 25A/ 40A/ 63A
- 30mA/ 100mA/ 300mA
- Double Pole (2IP)
- Four Pole (FP)

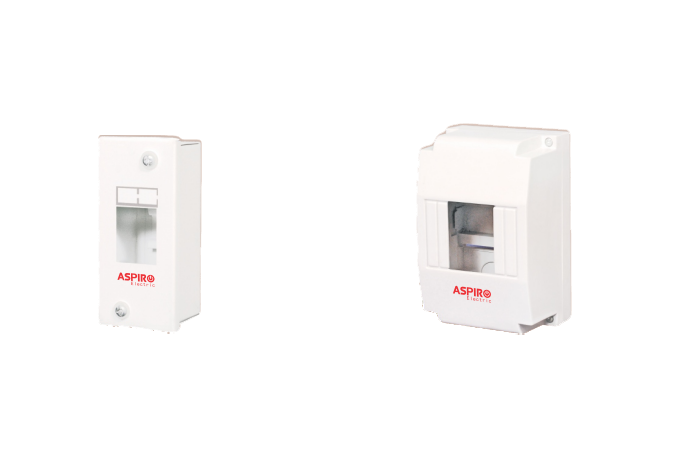

MCB ENCLOSURES
- Material : Metal and Plastic
- Suitable for residential, industrial and commercial use
- Supplied with neutral & earth link, top and bottom detachable plates
- Supplied with masking sheet to protect components from cementing
- during plastering
- IP 42 protected
- Double Pole (2P)
- Four Pole (FP)

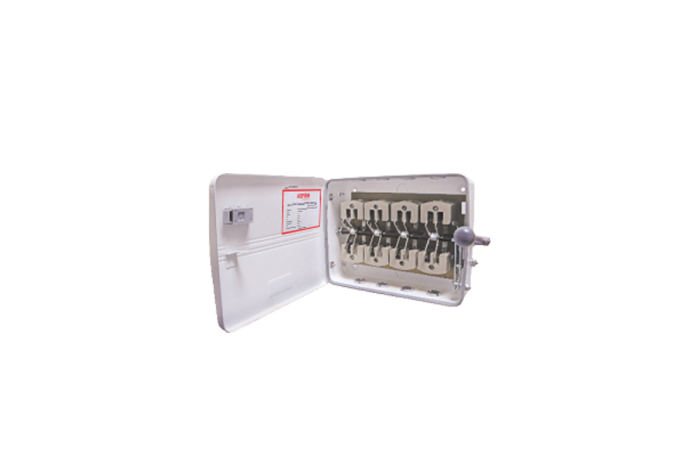

CHANGEOVER SWITCHES
- Conforms to IS/IEC 60947-1 & 3
- Type : Onload and Offload
- No. of Poles : Double Pole and Four Pole
- Range : 32Amp to 3150 Amp in 7 Frame sizes
- Available in open execution & in sheet steel enclosure
- Quick make & quick break mechanism
- High electrical & mechanical endurance
- Advance neutral
- Enclosed housing to avoid dust ingress
- Staggered terminals upto 800 A
- Load and Line reversibility
- Provision of phase separators, add-on auxiliary switch
- Door interlock and padlock facility

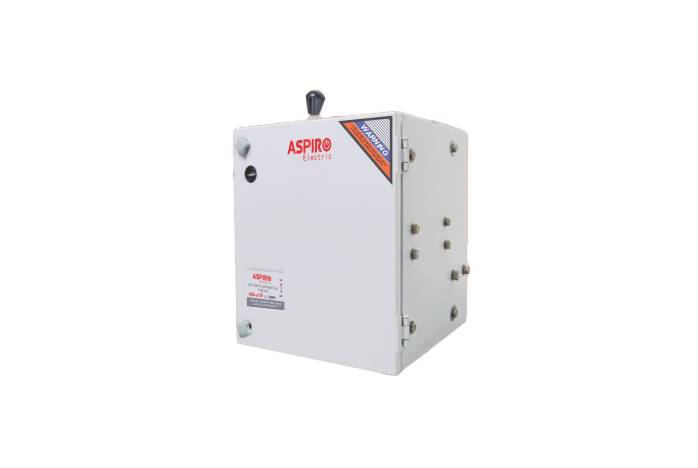

SWITCH DISCONNECTOR FUSE UNIT (SDF)
- Conforms to IS/IEC 60947-3
- No. of Poles : TPN / FP
- Ratings : 32A upto 800A
- Rated voltage : 1000V AC / 1500V DC
- High Breaking capacity : 80kA with fuses
- Utilization category : AC 23A
- Contact position clearly visible through inspection windows
- ON/OFF position clearly indicated on handle and on switch mechanism
- Independent manual operation
- Front operated rotary handle with door interlock
- Padlock Feature
- Storage ambient temp. : -25 degree C to 55 degree C
- Working ambient temp. : -20 degree C to 45 degree C
- Relative Humidity : max. 95%
- Rated Frequency : 50/60 Hz

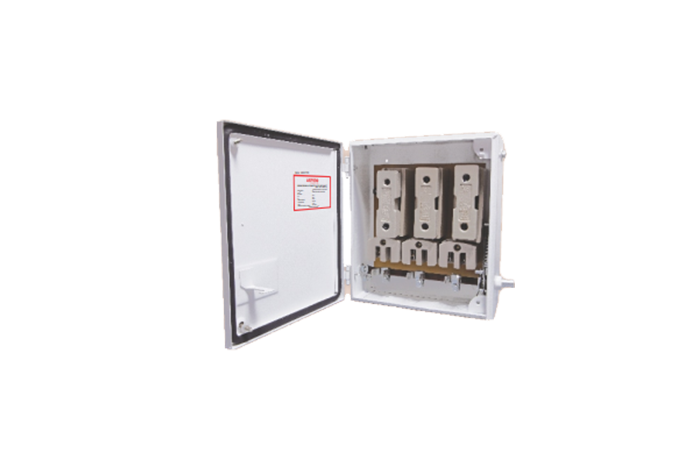

REWIREABLE SWITCH FUSE UNIT (SFU)
- Conforms to IS/IEC 60947-3
- No. of Poles : SPN/ TPN
- Ratings : 16A upto 200A
- Rated voltage : 240V/ 415V
- Utilization catgegory : AC22A
- Side handle operation
- Suitable for surface mounting
- Enclosed fabricated steel sheet with phosphate coating be seven
- tank system
- Powder coated to give lasting surface protection
- Provided with adequate Knock Outs for cable entry and inner
- mounting holes for easy installation
- The fixed contacts are provided with removable shield
- ON/OFF position clearly indicated on handle & on enclosure label
- Independent manual operation

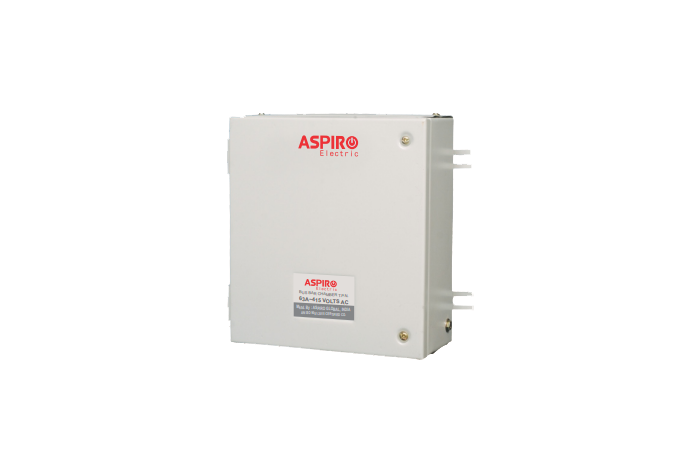

BUSBAR CHAMBERS
- Conforms to IEC 60439 and IEC 60529
- Ratings : 100A/ 200A/ 400A/ 630A/ 800A
- Short circuit withstand capacity : 25kA/ 35kA/ 50kA
- No. of ways : 4/ 6/ 8 way
- Readymade and customized solution for safe power distribution
- Modular/ compact design provides economy of space and cost
- Simple and efficient system configuration
- Easy, flexible and time saving installation
- Shock proof design
- Elegant & sleek in appearance

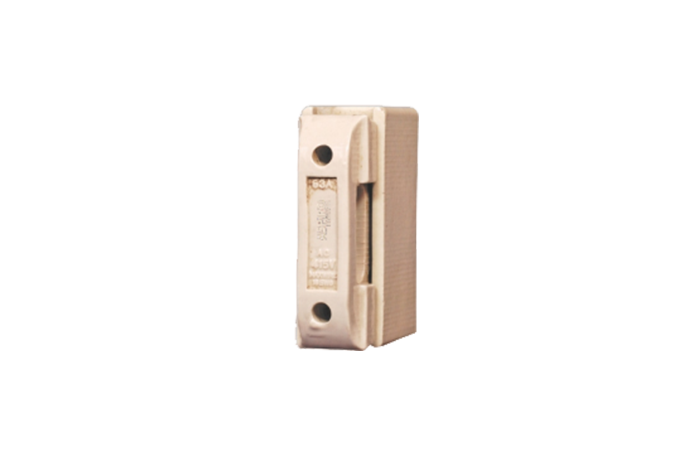

KIT KAT TYPE FUSES
- Ratings : 16A upto 500A
- Rated voltage : 240V/ 415V
- Rated Frequency : 50/ 60 Hz
- Easy and quick to install
- Low maintenance and replacement time
- Cost-effective solution
- EC grade copper is used for contacts for highest conductivity
- Silver plating is done on the metal parts

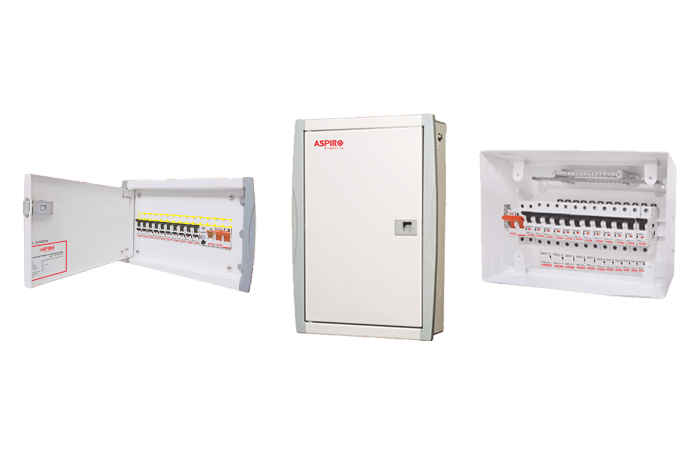

DISTRIBUTION BOX
- Conforms to IS : 8623-3
- Degree of Protection : IP 42
- Number of Way : 4/ 6/ 8/ 10/ 12/ 14/ 16 ways
- Supplied with wire kits fitted with lugs, earth link, blanking plate, cable ties and circuit identification labels
- Side locking Din Channel
- Cement Spill Protector
- Shrouded Neutral link and Insulated Copper Bus Bar for extra safety
- Suitable for surface and flush mounting
- Top and bottom removable gland plates with bigger knock outs
- Suitable for MCB/ RCCB/isolator as incomer and MCBs as outgoing
- Conforms to IS : 8623-3
- Degree of Protection : IP 43
- Number of Ways : 4/ 6/ 8/ 12 ways
- Supplied with wire kits fitted with lugs, earth link, blanking plate, cable ties and circuit identification lables
- Top and bottom removable gland plated with bigger knok outs
- Side Locking Din Channel
- Shrouded Neutral link and Insulated Copper Bus Bar for extra safety
- Suitable for MCB/RCCB/Isolator as incomer and MCBs as outgoing
- Conforms to IS : 8623-3
- Degree of Protection : IP 43
- Number of Ways : 4/ 6/ 8/ 12 ways
- Suitable for MCCB/ MCB/ RCCB / Isolator as incomer and MCBs as outgoing
- Supplied with wire kits fitted with lugs, earth link blanking plate, cable ties and circuit identification lables
- 125A/ 160A/ 200A Bus Bar in TP/FP MCCB incomer to suit different installation requirements
- Shrouded Neutral Ling insulated Copper Bus Bar for extra safety
- Identification of RYB Phases from top top in MCB/MCCB incomer
- Suitable for surface and flush mounting
- Top and bottom removable gland plates with bigger knock outs
- Side Locking Din Channel
