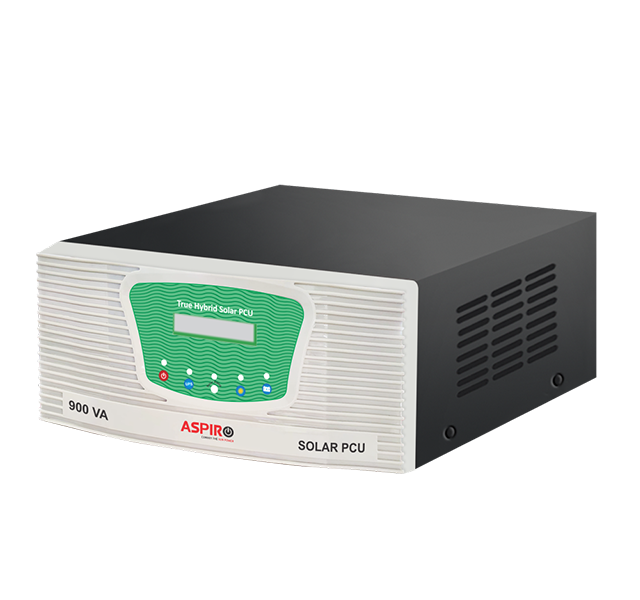

Technical Specification
Model |
900 VA |
1100 VA |
1600 VA |
2100 VA |
Nominal Battery Voltage |
12 VDC |
24 VDC |
AC Mains Mode
Input Voltage Range (Normal Mode) |
100 to 290 VAC ± 5 VAC (Wide Range) |
Input Voltage Range (UPS Mode) |
180 to 260 VAC ± 5 VAC |
Changeover Time Maximum |
< 30 ms (in Normal Mode) and < 10 ms (in UPS Mode) |
Max. Charging Current |
5A to 18A ± 1A (User Programmable) |
Boost Charging Voltage |
14 VDC to 15 VDC ± 0.2 VDC per Battery (User Programmable) |
Boost Charging Voltage (Factory Default) |
14.4 ± 0.2 VDC for Tubular 13.8 ± 0.2 VDC for SMF |
28.8 ± 0.4 VDC for Tubular 27.6 ± 0.2 VDC for SMF |
Float Charging Voltage (Factory Default) |
13.7 ± 0.2 VDC for Tubular 13.5 ± 0.2 VDC for SMF |
27.4 ± 0.4 VDC for Tubular 27.0 ± 0.2 VDC for SMF |
Battery Backup Mode
Output Voltage at No Load |
220 VAC ± 7 VAC |
Output Frequency |
50.0Hz ± 0.5Hz |
Output Wave Form (At No Load) |
100% Pure Sine Wave |
Battery Low Alarm |
10.6 ± 0.2 VDC |
21.2 ± 0.2 VDC |
Battery Low Protection |
10.4 ± 0.2 VDC |
20.8 ± 0.2 VDC |
Overload (Normal/UPS) |
120% (30 Sec) |
Short Circuit (Normal/UPS) |
300% |
DESCRIPTION OF SWITCHES ON FRONT PANEL
S.No. |
Switch |
Function(s) |
Switch Led Status |
1 |
POWER |
ON/OFF the UPS Output |
System ON - Led ON System OFF - Led ON |
2 |
INV/UPS |
When it is Short Pressed it Enables UPS/Inverter Mode Selection
When it is Long Pressed Enables the UPS Parameter Setting :
The LCD Displays : “Edit Parameters Setting”
The Switches function now Change to :
POWER - Enter/OK Switch
INV/UPS - Increment Value
SMF/TUB - Decrement Value
HYBRID/PCU - Back/Exit Switch |
UPS Mode ON - Led ON UPS Mode OFF - Led OFF |
3 |
SMF/TUB |
When it is Short Pressed it Enables TUBULAR or SMF Battery Selection |
System ON - Led ON System OFF - Led ON |
4 |
HYBRID/PCU |
When it Short Pressed it Enables the Hybrid PCU Mode Selection |
PCU Mode - Led ON Hybrid Mode - Led OFF |
Note:for expert we can provide 25Ah & 55Ah also.
Protection
Battery Voltage Low (3 Auto Retries), Over Load (6 Auto Retries), Battery Full Charge, Over Temperature, Short Circuit
SETTING PROCESS
- Step 1 : Long press the INV/UPS Switch until LCD Display : “Edit Parameter Settings”
- Step 2 : Press POWER Switch (Enter/OK in Setting Mode) then “MAX BATT VOLTAGE” Setting Screen will appear if TUBULAR Battery Selected else “BATT LOW CUT” Setting Screen appear
- Step 3 : To Change the Maximum Battery Voltage Value press INV/UPS Switch (Increment Value in Setting Nlode) or SMF/TUB Switch (Decrement Value in Setting diode)
- Step 4 : After Setting Nlaximum Battery Voltage Now press POWER Switch (Enter/OK in Setting Nlode) then “BATT LOW CUT” Setting screen will appears
- Step 5 : To Change the Battery Low Cut Voltage Value press INV/UPS Switch (Increment Value in Setting Mode) or SMF/TUB Switch (Decrement Value in Setting diode)
- Step 6 : After Setting Battery Low Cut Voltage Now press POWER Switch (Enter/OK in Setting Mode) then “MAX GRID CHG” Setting Screen will appear
- Step 7 : To Change the Maximum Grid Charging Current Value press INV/UPS Switch (Increment Value in Setting Nlode) or SMF/TUB Switch (Decrement Value in Setting Mode)
- Step 8 : To Change the Grid Reconnect Voltage Value press INV/UPS Switch (Increment Value in Setting Mode) or SNIF/TUB Switch (Decrement Value in Setting diode)
- Highly efficient battery charging algorithm as a result you will get non-stop power
- Advanced DSP technology with Arm Cortex controller for absolute and stable and 100% pure sine wave output
- Indications for Mains ON, UPS ON, Battery Low, Charging/Discharging, Over Load, Short Circuit, Thermal Trip on LCD Display
- User-Friendly LCD for the display of mode of operation and all parameters
- DUAL DIODE OF WORKING : UPS AND NORMAL
- UPS Mode : Fast switching, Input operating range from 180V to 260V
- Normal Mode: Wide Input operating range from 100V to 290V
- DUAL BATTERY CHARGING MODE : TUBULAR AND SIMF BATTERY MODE
- Different Battery selection mode to enhance the battery life
- Intelligent overload sensing circuitry with auto retries facility
- Programmable thermal protection : cooling fan which operates as needed
- High Power new generation MOSFET cable to handle high in-rush/ surge current
- Resettable AC circuit breaker which reduce service calls.
- Double stage MOSFET Over Current Protection by measuring Rds ON
- Highest efficiency at lower cost
- Pure Sine Wave Output with low Total Harmonic Distortion (THD)
- High End ARM-Cortex based design of Solar Charge Controller for charging through Solar Power
- Eco-Friendly operation
- Electronic Over Current Charging Protection
- No mechanical contact for charge controller
- Designed for continuous reliable and robust operation
- AC Plains Voltage
- Battery Voltage
- Faults Status
- Overload
- Low Battery
- Inverter Status
- Output Voltage
- Charging Mode
- Short Circuit
- High Battery
- O/P Load in% on Battery
- Grid Charging Current
- Mains Fuse Trip
- Over Temp
- Grid Over Load
