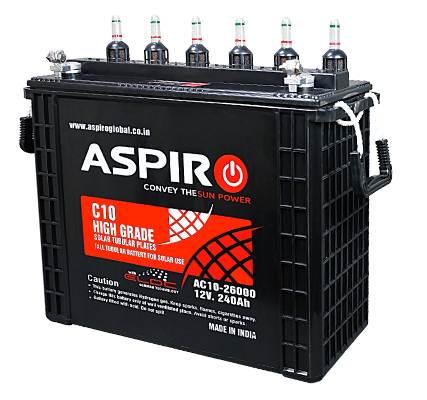

C10 Solar Lead Acid Tubular Battery
Product Features
Available in Solar-Tubular Range
PPCE Container
Tubular Positive Plates
Pasted Negative Plates
High Porosity Envelope Separators
Microporous Cermic Vent Plug
High Tensile, Acid Resistant Polyster Gauntlets
Low Resistance Fasterers
Charging Characteristics of Solar Batteries
| Model of Operation | Voltage setting per mono-block unit for amblent temperature 25-30°C | Current Settings | |
|---|---|---|---|
| 12V Mono-Block | 6V Mono-Block | Maximum - 20% of battery Ah capacity | |
| Float Voltage | 13.7V ± 0.1V | 6.85V + 0.1V | |
| Bulk Voltage | 14.5V ± 0.1V | 7.25V ± 0.1V | Maximum - 0% of battery Ah capacity |
| Low Voltage Disconnect | 14.5V ± 0.1V | 5.55V ± 0.1V | |
Technical Data
| Solar Batteries(IS) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery Type | Spec | Capacity | Dimensions | Cell | Weight with Acid + Water | Terminal | Electrolyte | ||||
| Battery Model | 10hr | 5hr | L | W | H | TH | Layout | Kg | Volume Ltrs | ||
| ASTL 20 | 20 Ah | 20 | 17 | 305 | 170 | 180 | 230 | R | 13.5 | L-Type | 6.4 |
| ASTL 40 | 40 Ah | 40 | 33 | 410 | 175 | 190 | 240 | L | 22.0 | L-Type | 9.6 |
| ASTL 75 | 75 Ah | 75 | 62 | 500 | 220 | 205 | 255 | Layout 3 | 36.0 | L-Type | 15.3 |
| ASTL 100 | 100 Ah | 100 | 83 | 500 | 220 | 205 | 255 | Layout 3 | 40.0 | L-Type | 17.0 |
| ASTL 120 | 120 Ah | 120 | 100 | 505 | 190 | 360 | 410 | L | 54.5 | L-Type | 21.0 |
| ASTL 150 | 150 Ah | 150 | 125 | 505 | 190 | 360 | 410 | L | 59.4 | L-Type | 19.8 |
| ASTL 200 | 200 Ah | 200 | 180 | 505 | 190 | 360 | 410 | L | 65.0 | R-Type | 21.0 |
| ASTL 220 | 220 Ah | 220 | 200 | 505 | 190 | 360 | 410 | L | 68.0 | R-Type | 22.5 |
| ASTL 240 | 240 Ah | 240 | 220 | 505 | 190 | 360 | 410 | L | 71.0 | R-Type | 23.2 |
| ASTL 250 | 250 Ah | 250 | 230 | 505 | 190 | 360 | 410 | L | 75.0 | R-Type | 24.0 |
| ASTL 270 | 270 Ah | 270 | 250 | 505 | 190 | 360 | 410 | L | 78.0 | R-Type | 24.0 |
Note:for expert we can provide 25Ah & 55Ah also.
Tubular Technology
ASPIRO Tubular Batteries have the spines or the positive plate support cast at high pressure (100 Bar) in imported HADI machine which ensures void free structure which ensures void free orientation and can protect the plate support from anodic corrosion. This in turn ensures higher reliability and longer life. ASPIROTubular plates are also cast with low antimony content which reduces the topping up frequency, making the battery low maintenance type. This also keeps the float charging current at a lower value, thus minimises the total energy requirement needed to keep the battery in charged condition during standby float application.
- Available in SOLA-TUBULAR Range
- PPCE Container
- Tubular Positive Plates
- Pasted Negative Plates
- High Porosity Envelope Separators
- Microporous Ceramic Vent Plug
- High tensile, acid resistant Polyster Gauntlets
- Low Resistance Fasterers
- Heavy Duty Terminal
- Specially Designed For arduous SPV application
- Manufacturing with Tubular Technology which stands for reliable and consistent performance
- Designed to operate in partial state of change condition.
- Ideally designed for cyclic application.
- Superior voltage and energy output profile.
- Excellent charging efficiency
- Service life comparable with the best of the international Brands.
- Designed cycle life at C10 discharge at 25°C
- Supplied in factory charged condition - ensures optimal quality and ready to us.
- Ultra low maintenance
- Low rate of self discharge
- 6V mono-blocks are supplied with Ms Cabinet (fitted suitable exhaust system)
